FM-485-FO-M4S

FM-485-FO-M4S

by sales.aus@protoconvert.com

485-FO-M4S

Product Description

The Multi-Drop Bus Fiber Optic Modem series products provide an optical bus network for RS-232, RS-422 or RS-485 data interfaces over a pair of multi mode or single mode optical fibers. The Terminal module units operate as the end or terminal points and provide an electrical connection and a two fiber optical connection. The Repeater module units act as in-line repeater stations and provide a single electrical connection and two optical connections, one upstream and one downstream . This series is available in either wall mount, DIN rail or 2U chassis card configurations.

Specification

RS-485
Data Formats RS232,RS422,RS485
RS232 Data Rate 115.2kbps
RS422/485 Data Rate 512kbps
Bit Error Rate <1 x 10-12
Connectors
Data Screw Block Terminal
Fiber ST, SC or FC (ST fitted as standard)
Environmental
Operating Temperature -30C—+70C
Storage Temperature -40C—+90C
Operating Humidity 0-95%
MTBF >100,000 Hours
Optical
Fiber Multi mode or single mode
Wavelength MM:850nm,SM:1310nm
Number of fibers 4 or 2(WDM,Bi-Di)
Power
Power Input AC 220V 110v or DC+110V ,+5V ,+12V ,+24V, +48V Option
Mechanical
Dimensions 43(W)×88.5(D)×124.5(H)mm DIN Rail

Model Selection

Model Number Description Fiber No. Fiber Mode Fiber Connector
FM-485-FO-M4M Multi Drop Link,4 Fiber, 2km 4 Multi mode ST/SC/FC
FM-485-FO-M4S Multi Drop Link,4 Fiber, 20km 4 Single mode ST/SC/FC

Enclosure

LED Indicators:POW:

Power Supply                                               On if Power input is OK

ACT: RS-485 Data transmit/receive          Flashing if there is activity

TX1: The 1 Channel Transmit Fibre Link     Flashing if there is activity

RX1: The 1 Channel Receive Fibre Link      Flashing if there is activity

TX2: The 2 Channel Transmit Fibre Link    Flashing if there is activity

RX2: The 2 Channel Transmit Fibre Link    Flashing if there is activity

Data Input
D+: Connect RS-485+ or Line A
D-: Connect RS-485+ or Line B
GND: GND of RS-485

V-: DC24V+

V+: DC24V-

GND: No Connection

Fiber Connectors

FTX1:         Fiber Optical ST of the 1 channel ( transmit & receive )

FRX1:         NONE

FTX2:         Fiber Optical ST of the 2 channel ( transmit & receive)

FRX2:         NONE

Caution

  • Switch off all power supply before installation
  • Ensure fiber is properly aligned to the receiving connector
  • Do NOT stare at the fiber core
  • On the bottom of the product, there is a DIP Switch, the users should setup the DIP Switch according to the selecting mode.

DIP Switch setup table

DIP D1 D2 D3
STATE OFF Terminal

Resistance

(120Ω)

OFF

Install Applications

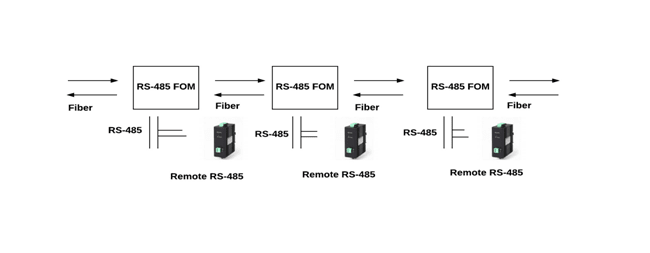

Figure 1 Multi-Drop Bus

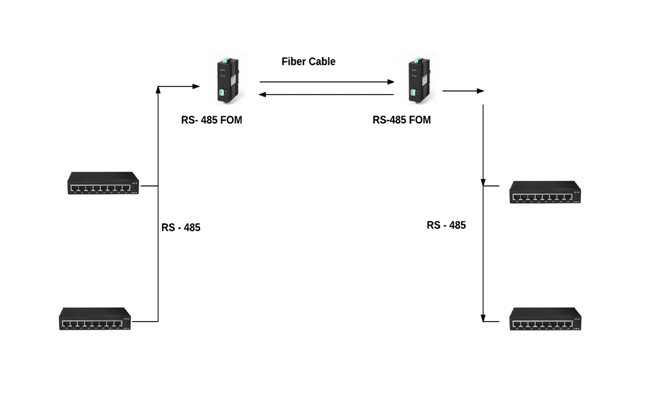

Figure 2 Point to Point (Trunk Line)

Dimensions (mm)
