PG-101-119

PG-101-119

by sales.aus@protoconvert.com

OPC UA – Modbus TCP Gateway (PG-101-119) Solutions is a powerful, excellent, fully flexible, and productive Building & Industrial Automation gateway that allows integrators to easily connect devices to networks in commercial buildings and industrial facilities.

Modbus TCP and OPC UA (client only) protocols are supported by the PG-101-119 gateway.



This gateway may be set up to do the following:

OPC UA Client and Modbus TCP Client: This gateway will connect to an OPC UA server hosted by a third party and read or write tags. It will, however, be a Modbus client that can receive and write data from a Modbus server.

When you have Modbus TCP-based server devices and require a way to read and write values to your OPC server, this mode comes in handy. Alternatively, you may wish to read OPC UA tags on a regular basis and write the values to a Modbus server device.



OPC UA Client and Modbus TCP server: This is most likely the most popular operating mode. In this mode, the gateway is set up to read OPC UA tags and broadcast them as a server over Modbus TCP.

As a result, a third-party building automation/management system (BAS/BMS) may now read all of this Modbus data (and hence have access to the OPC UA data via the gateway). OPC UA tags may also be written from the Modbus side. As a result, the BAS/BMS system can use the gateway to set values on the OPC UA server.

With its robust set of features, the Gateway has benefited system integrators all around the world. The gateway also runs the same protocol conversion software on a productive and cost-effective platform, backed by the same experience, engineering skill, and technically proven support that integrators have come to expect from this Gateway.

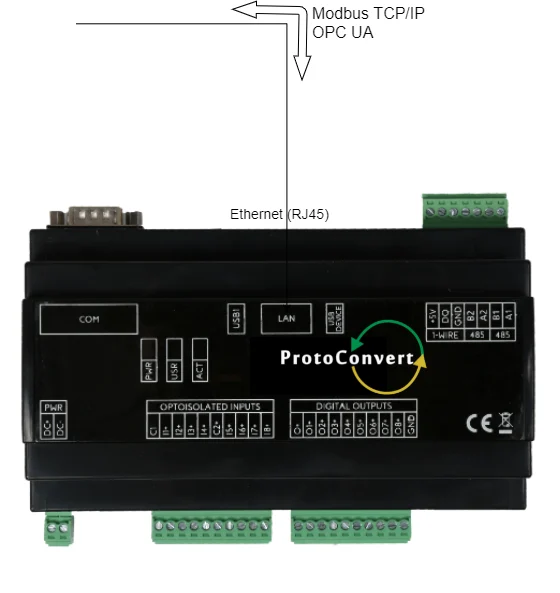

Modbus-TCP_IP-OPC-UA Proto

Features:

  • In the standard version, you may interface up to 1000 points (upgrades to higher points can be purchased).
  • DIN rail attachment.
