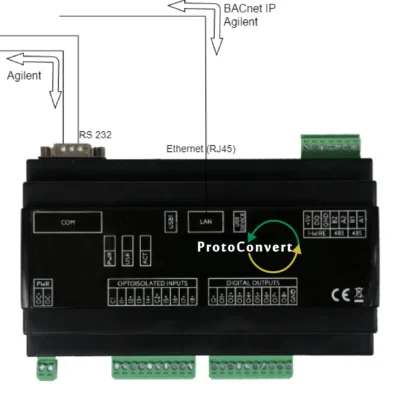

BACnet IP – Agilent Gateway Solutions (PG-103-142) is a very powerful and outstanding processor that is totally flexible and productive Building & Industrial Automation gateway enabling integrators to easily connect devices to networks in commercial buildings and industrial facilities.
PG-103-142 The Agilent and BACnet IP protocols are supported by the gateway. On each protocol interface, it can be configured as a Client or a Server.
The Gateway can read data from your BACnet IP devices and deliver it on Agilent when setup as a BACnet IP client. It can also write commands to the BACnet IP devices from the Agilent side.
The Gateway can read data from Agilent devices and provide it as BACnet IP data when configured as an Agilent client. It can also write commands to Agilent devices from the BACnet IP side.
On both BACnet IP and Agilent interfaces, the Gateway may be set to act as a server. When data transmission between a BACnet IP client (for example, SCADA) and an Agilent client is necessary, this mode is beneficial (for e.g. a Building Management System).
On both BACnet IP and Agilent interfaces, the Gateway may be set to act as a client.
With its strong set of features, the Gateway has benefited system integrators all around the world. The gateway also runs the same protocol conversion software on a productive and cost-effective platform, backed by the same experience, engineering knowledge, and technically proven support that integrators have come to expect from this Gateway.
Features
- Up to 1000 points can be interfaced
- DIN rail attachment
- One-wire serial port built-in
- Support for BACnet COV for rapid data transmission while minimizing BACnet network load.
