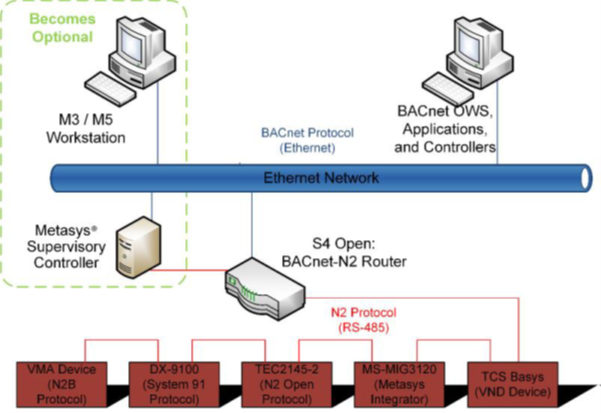

S4IS BACnet N2 Integration

Why This Solution?

• Secure
  Follows Cybersecurity best practices.
• Simple
  Streamlined UI makes configuring and maintaining the
  system easy.
• Compatible
  The BACnet protocol provides universal interoperability
  with any BACnet client or value-added application.
• Scalable
  The setup wizard automatically discovers and configures
  the legacy N2 devices on any size N2 bus.

Key Benefits

• Delivered as a turnkey network appliance, hosted on an
  Industrial PC
• Standard vendor tools are used to configure N2 devices
  on each N2 bus
• All Metasys® N2 devices are supported including N2 Open,
  System-91, VMA, Facility Explorer, MIG, Centaurus
  Integrator, and 3rd party Metasys® Compatible devices
• Supports BACnet discovery
• Every N2 point is fully accessible, supporting read,
  write, override, and release operations as defined by
  the N2 device
• Retain legacy supervisory controllers, i.e. NCM, N30,
  NAE et al., and all the logic they may be performing,
  via the Upstream N2 Port

Features of BACnet N2 Integration

• Integrates legacy Johnson Controls N2 devices
• BACnet/IP Output
• Automatic Point Mapping
• Supports Multiple Controllers
• Real-time Communication
• Minimum Downtime

Supported Data Points

Ordering Information

Benefits
