JCI Metasys N2 is an extremely popular protocol used in Building Automation.

IntegrationTek offers excellent solutions to integrate your JCI Metasys N2 devices on other communication protocols like Modbus RTU , Modbus TCP/IP, SNMP, BACnet MSTP, BACnet IP, LonWorks and many others.

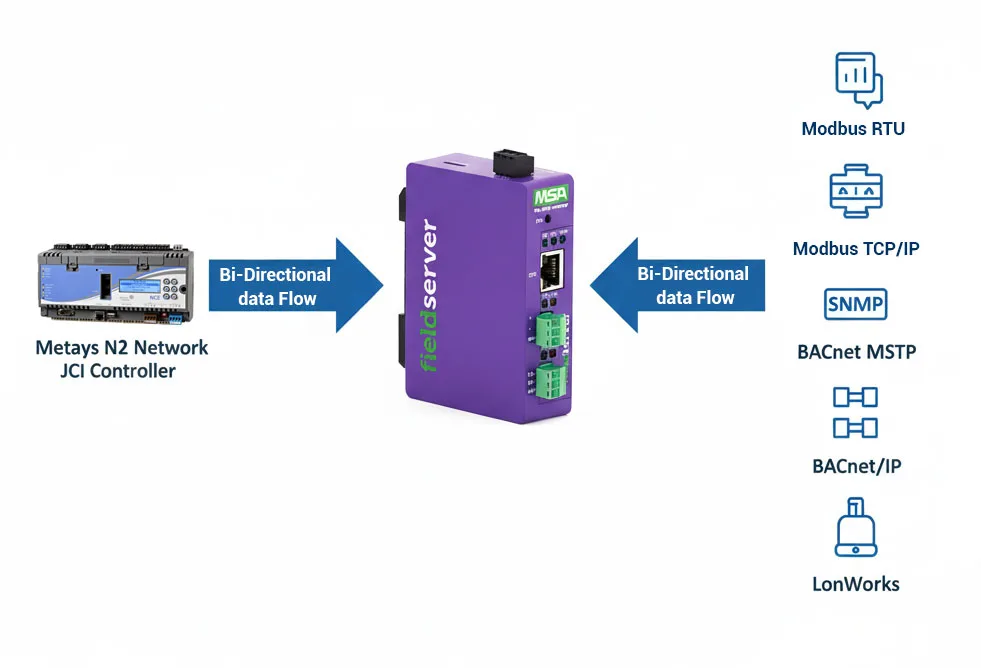

All our protocol gateways can be configured to transfer data in both directions. In other words, using our gateways any of the following are possible:

Configure our gateway as a master on JCI Metasys N2 bus and a server on the other protocol interface (like Modbus). In this mode your Modbus based SCADA/Control system can read/write data from the JCI Metasys N2 slave devices via our gateway.

Configure our gateway as a server on the JCI Metasys N2 bus and as master/client on the other protocol interface (like Modbus). In this mode your JCI Metasys N2 based control system will be able to monitor and control devices on the other protocol.

Configure our gateway to serve data on JCI Metasys N2 and as a slave on the other protocol interface. This mode is for exchanging data between  an JCI Metasys N2 and a non-JCI Metasys N2 control system.

Configure our gateway as a mater on JCI Metasys N2 bus and a master on the other protocol interface. This mode is useful for controlling a slave device on one protocol based on a sensor/data value on another protocol.

Following are the most popular gateway combinations available. Please select the part number/combination of your choice for more details.

Interface 1/Int2 BACnet MSTP BACnet IP Modbus RTU Modbus TCP/IP SNMP JCI Metasys N2
JCI Metasys N2 PG-102-106-AAPG-103-106-AAPG-100-106-AAPG-101-106-AAPG-106-104-AAPG-106-105-AC
