Agilent data acquisition devices, such as the 34970A, require gateway solutions to acquire and store data.

• Various connection options are supported by our gateways: Ethernet or RS232.
• There are SCPI commands for reading channels available.
• Desired channels can be programmed to scan one at a time or all at once on a regular basis.
• Before serving out on BACnet or Modbus, the raw data can be scaled/massaged.
• On specific requests, we can be able to offer additional functionality or commands.

The gateway supports reliable communication between Agilent devices and industrial automation systems, enabling seamless integration with Building Management Systems (BMS), SCADA platforms, PLCs, and IoT applications. Configurable polling intervals allow users to optimize performance based on application requirements, reducing unnecessary network traffic while ensuring timely data acquisition. Multiple measurement parameters such as voltage, current, temperature, resistance, and other supported values can be collected and mapped to the desired protocol. Built-in data buffering ensures that measurement values are retained during temporary communication interruptions, improving system reliability. The gateway also minimizes manual intervention by automatically collecting, processing, and making measurement data available to connected systems in real time, providing a simple and efficient solution for industrial monitoring and control applications.

Working:

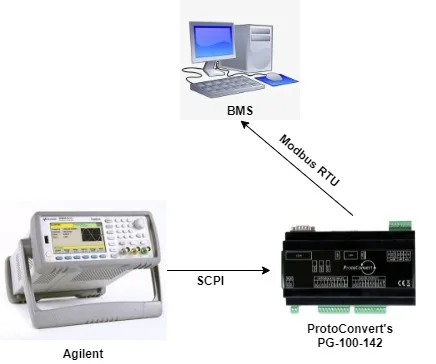

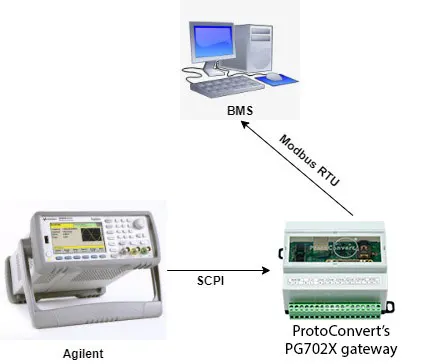

• The resource locator identifies the Agilent unit.
• The gateway delivers commands to scan one channel at a time or to monitor many channels dependent on the user’s preferences.
• Data is saved in the internal cache after the channels are examined at the intervals chosen by the user.
• The data can be changed to make it easier to understand on the serving protocol (Modbus/BACnet/SNMP).
• The config.txt file, which is loaded on the gateway unit and can be changed with any text editor, is used for configuration.

Interface	Modbus RTU	Modbus TCP	BACnet MSTP	BACnet IP	SNMP
Agilent	PG-100-142	PG-101-142	PG-102-142	PG-103-142	PG-104-142
