Simple Network Management Protocol (SNMP) is a popular standard for management of IT networks and related devices.

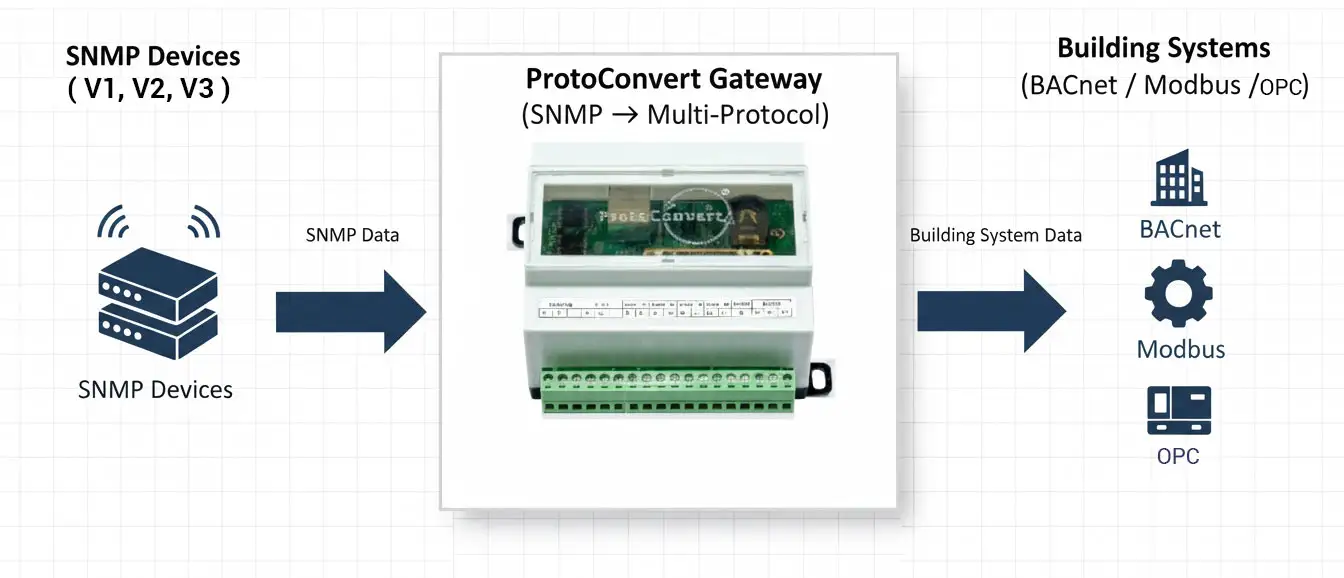

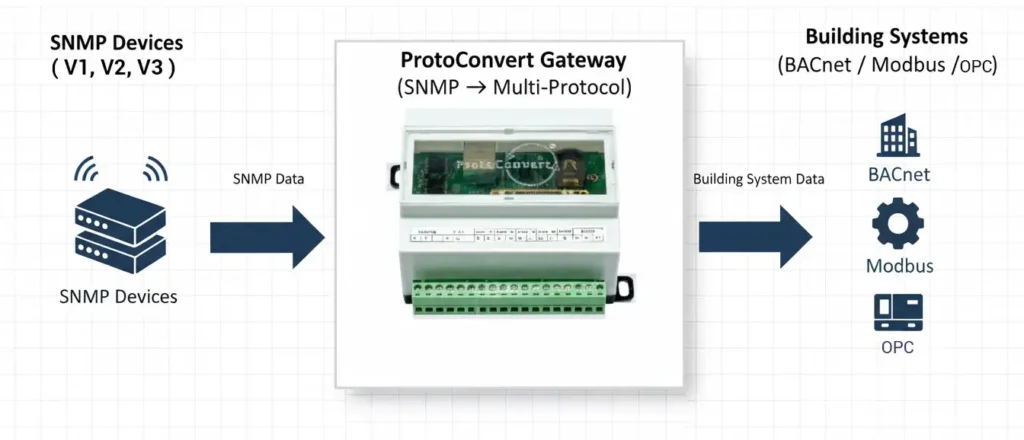

IntegrationTek offers excellent solutions to integrate your SNMP devices on other communication protocols like Modbus RTU , Modbus TCP/IP, LonWorks, BACnet MSTP, BACnet IP, JCI Metasys N2 and many others.

All our protocol gateways can be configured to transfer data in both directions. In other words, using our gateways any of the following are possible:

Configure our gateway as an SNMP Manager and a server on the other protocol interface (like Modbus). In this mode your Modbus based SCADA/Control system can read/write data from the SNMP devices via our gateway.

Configure our gateway as an SNMP Agent/server and as master/client on the other protocol interface (like Modbus). In this mode your SNMP based network management will be able to monitor and control devices on the other protocol.

Configure our gateway as a SNMP Agent/server and as a slave on the other protocol interface. This mode is for exchanging data between  an SNMP and a non-SNMP control system.

Configure our gateway as an SNMP manager and a master on the other protocol interface. This mode is useful for controlling a slave device on one protocol based on a sensor/data value on another protocol.

When configured as an SNMP Agent our gateways can send SNMP Trap messages on SNMP v1 and v2c.

When configured as an SNMP manager our gateways can receive SNMP v1 and v2c Traps.

Following are the most popular gateway combinations available. Please select the part number/combination of your choice for more details.

Interface 1/Int2 BACnet MSTP BACnet IP Modbus RTU Modbus TCP/IP LonWorks JCI Metasys N2
SNMP PG-102-104-AAPG-103-104-XXPG-100-104-AAPG-101-104-XXPG-104-105-ACPG-106-104-AA
