ProtoConvert Modbus, BACnet over JSON/XML/MQTT

ProtoConvert Gateway/Converter supports Modbus RTU, BACnet MSTP, Modbus TCP/IP and BACnet IP IIoT Solution.

The unit supports 1 x RS485 Port and 1 x RS232 Port which allows you to connect 31 Modbus devices (recommended) on  RS 485 Port and single modbus device on RS 232 Port which allows creating P2P Connection with the device.

RS 485 Port also lets you connect MSTP devices in same daisy chain. User can even publish data from Modbus RTU or BACnet IP on JSON/XML/MQQT.

This model also supports Modbus TCP/IP and BACnet IP based devices and publish it on JSON/XML/MQTT.

Our IIoT Gateway is bi-directional solution with which user can get and post data on remote or local API or BMS or SCADA via wired Internet facility. We can provide any combination of above mentioned protocols with either JSON/XML/MQTT. We can even customize JSON/XML/MQTT scheme as per your requirement. Additional Feature of GSM/GPRS modem on board is supported by PG300.

Gateway has it’s own web interface using which you can monitor values in tabular format which you can change on single click.

The device has an onboard MySQL data base and it is possible to store up to 100,000 values. The stored values can be retrieved in .csv file format. You can mail .csv file on specific mail id. You can upgrade storage from 100,000 to higher

Please click on the below link to download the datasheet. Also find the different combinations of protocols inside the datasheet.





Information on IIoT

IIoT (Industrial Internet of Things) is mainly the use technologies to improve or develop industrial, Building and manufacturing procedures. The IoT is a division of a larger concept recognized as the INTERNET OF THINGS. The concepts of IIoT and IoT have the similar main quality of availability, intelligent and connected devices. The difference between the two concepts is in their usages. IoT is normally used for consumer usage and IoT is used for Industrial use such as manufacturing, supply chain monitor and management system. The IIoT is a network of intelligent computers, devices and objects that collect and share huge amounts of data. This collected data is sent to a central Cloud based service where it is grouped with other data and then shared with end users in a considerate way. This use of IoT in Manufacturing Industry is called IIoT.

IIoT will totally change and improve manufacturing by enabling the acquirement and ease of access of greater amounts of data, at greater speeds and more easily than before. Many new and interesting companies have started using the IIoT by taking advantage of smart and connected devices in their industries.

Payback of IIoT

  • IIoT Improves connectivity, scalability, effectiveness, cost reduction, time saving, accuracy.
  • IIoT Improves safety, provides predictive maintenance and other operational efficiencies leads to reduction in cost and thus benefits the companies in overall performance.
  • IIoT networks of smart devices allow industrial organizations to connect all of their people, data and processes from the industry floor to the managerial offices.

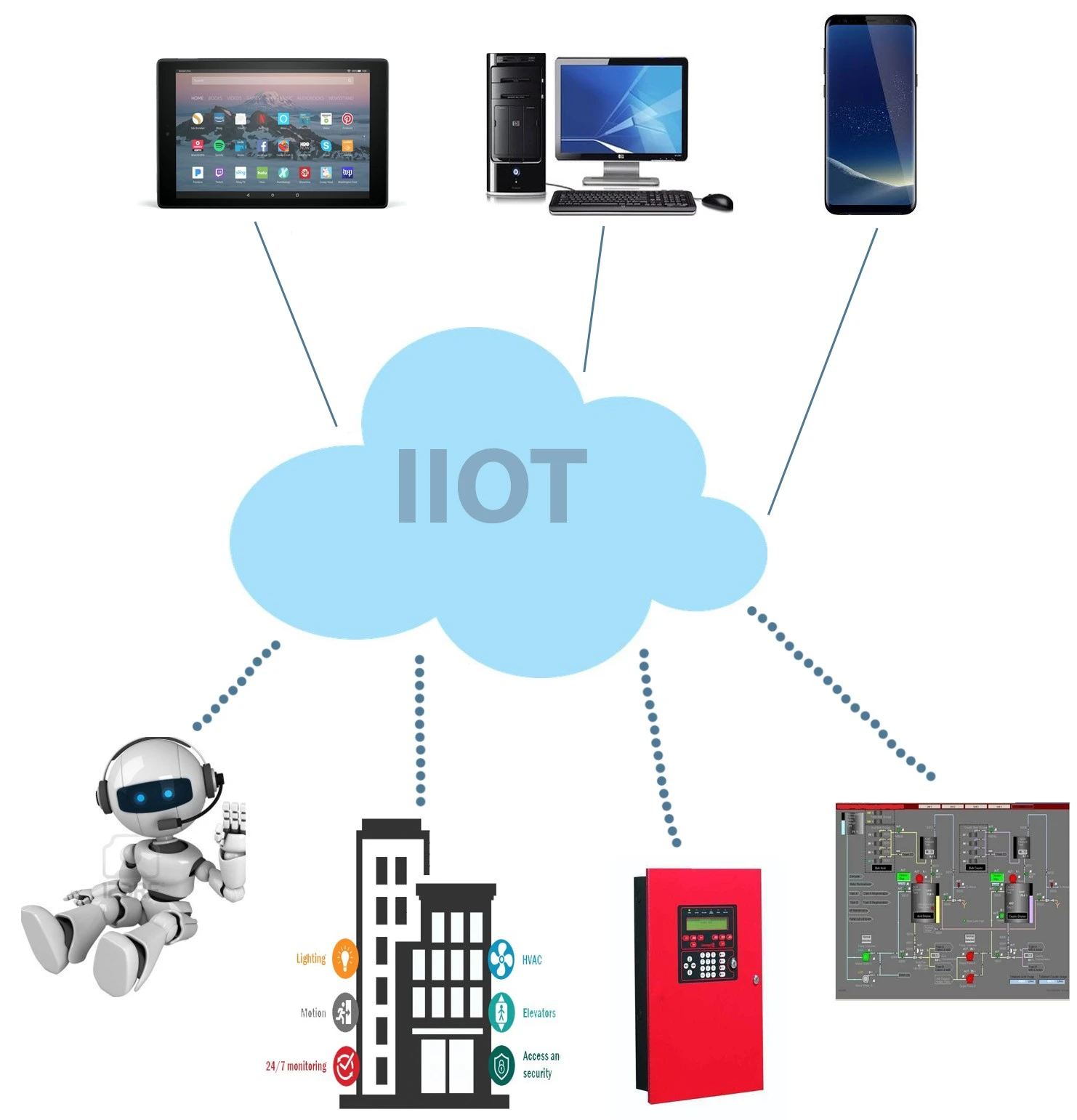

How IIoT Works?

IIoT Communication



IIoT is the internet extended into the physical world. Purpose of the IIoT is to collect data and transform it into useful information and support decision making. It is the basis of digital transformation when applied to the products, services and operations of physically-based companies. With IIoT decisions can be made using real information and not using estimates or assumptions.
