PG-102-101-AA

PG-102-101-AA

by sales.aus@protoconvert.com
Download Datasheet

PG-102-101-AA is highly powerful, superior, completely configurable and productive Building & Industrial Automation gateway for integrators to effortlessly interface devices to networks in commercial buildings and industrial plants.

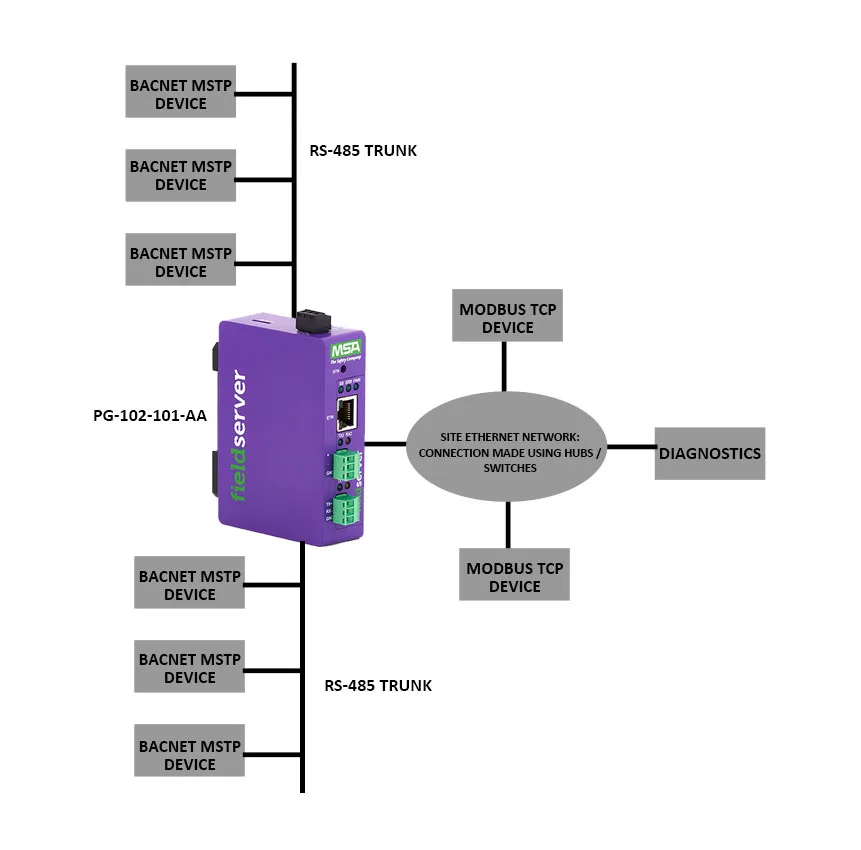

PG-102-101-AA Gateway model supports BACnet MS/TP and Modbus TCP protocols. It is a Bi-directional Converter that can be configured as a Client and/or a Server on either protocol interface.

When configured as a Modbus TCP client, the PG-102-101-AA can read data from your Modbus TCP devices and publish it as BACnet MS/TP data. Also, it can write commands sent from the BACnet MS/TP side to the Modbus TCP devices.

When configured as a BACnet MS/TP client, the PG-102-101-AA can read data from your BACnet MS/TP devices and publish it as Modbus TCP data. Also, it can write commands sent from the Modbus TCP side to the BACnet MS/TP devices.

The PG-102-101-AA can be configured to behave as a server on both Modbus TCP and BACnet MS/TP interfaces. This mode is useful when data exchange is required between a Modbus TCP client (for eg. SCADA) and a BACnet IP client (for eg. a Building Management System).

The PG-102-101-AA can be configured to behave as a client on both Modbus TCP and BACnet MS/TP interfaces.

PG-102-101-AA gateways have benefitted system integrators worldwide with its powerful line of gateways. Additionally, PG-102-101-AA gateway runs the same protocol conversion software on a productive and cost efficient platform backed by the experience, engineering expertise and technically proven support that integrators have come to expect from PG-102-101-AA.

Key Features:

  • Ability to interface up to 1000 points of common BAS protocols
  • 2xRS 485 Ports, 1xEthernet Port
  • BTL Mark – PG-10XX Series
  • LonMark Certified – PG-10XX Series
  • BACnet COV support for fast data communication while reducing traffic over a BACnet network
  • Multi-configuration capability; specific configurations selectable via DIP switches or software
  • Flat panel mount standard, DIN rail mount option
  • DIP switches to select baud rate or node ID on the fly

Scenario 1

  • There are several Variable frequency drives on the site which provides data output on Modbus TCP.
  • The site has a BACnet MS/TP based Controller which needs the energy data from the Variable frequency drives.
  • A direct exchange of data between Variable frequency drives and controller is not possible as the Variable frequency drives provide data output on Modbus TCP and Controller understands BACnet MS/TP only.

Solution

  • The devices can directly communicate with each other only if they are on the same protocol. Modbus TCP is an Ethernet based protocol and BACnet MS/TP is a Serial protocol. Hence, a converter is needed which converts the data from BACnet MS/TP device to Modbus TCP and vice versa.
  • PG-102-101-AA BACnet MS/TP to Modbus TCP converter is an excellent solution to this requirement. This helps the gateway in reading data from the Variable frequency drives on Modbus TCP and it caches this data internally and provides it on BACnet MS/TP when requested from the Controller.

Scenario 2

  • There are Chillers on the other site which provides data output on BACnet MS/TP.
  • The site has a SCADA on Modbus TCP which needs the temperature data from chillers on BACnet MS/TP.
  • A direct exchange of data between Chillers and SCADA is not possible as the Chillers provide data output on BACnet MS/TP and SCADA understands Modbus TCP only.

Solution

  • The devices can directly communicate with each other only if they are on the same protocol. Modbus TCP is an Ethernet based protocol and BACnet MS/TP is a Serial protocol. Hence, a converter is needed which converts the data from BACnet MS/TP device to Modbus TCP and vice versa.
  • PG-102-101-AA BACnet MS/TP to Modbus TCP converter is an excellent solution to this requirement. This helps the gateway in reading data from the Chillers on BACnet MS/TP and it caches this data internally and provides it on Modbus TCP when requested from the SCADA.

Outline of Modbus TCP and BACnet MS/TP

Modbus TCP:

Modbus TCP covers the use of Modbus communication via an ‘Intranet’ or ‘Internet’ environment using the TCP/IP protocols. The most common use of the protocols at this time is for Ethernet attachment of PLC’s, I/O modules, and Gateways to other simple field buses or I/O networks.
There will always be this question why the connection-oriented TCP/IP protocol is used rather than the datagram-oriented UDP. The Primary reason is to keep control of an individual ‘communication’ by isolating it in a connection which can be identified, cancelled , and supervised without the need of specific action on the client and server applications. This gives the mechanism a tolerance to network performance changes, and also gives a scope to add security features such as firewalls and proxies.

MODBUS/TCP/IP handles two different situations. A connection can be recognized too easily at the protocol level. A single connection can be used to carry out multiple independent communications. To add to it, TCP/IP allows a huge number of concurrent connections, so the user decides to re-use an old connection or reconnect to a frequently used connection.

The Modbus device can be connected using an Ethernet port on the gateway. We can make a query using any standard Modbus Scanner to extract the value from a Modbus device. All requests are sent via TCP/IP on registered port 502.

BACnet MSTP:

BACnet MS/TP is exclusive to BACnet and can be implemented using the EIA-485 signaling standard. This is a shielded twisted-pair (STP) LAN operating at speeds from 9.6Kbit/s to 76.0Kbit/s. This LAN type is particularly suitable for single controller and low cost communications.

Like the Control and Information Protocol (CIP) used in industrial application, BACnet uses objects to represent data on a network. Objects defined by the BACnet specification include Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Binary Value, Multi-State Input, Multi-State Output, Calendar, Event-Enrollment Program, Schedule, Command, and Device.

The BACnet protocol is a completely non-proprietary open communication software standard. The standard is now controlled by the ANSI (American National Standards Institute) and ASHRAE (American Society of Heating Refrigeration and Air-Conditioning Engineers) Standard 135- 1995. In June of 1995, ASHRAE adopted BACnet as a standard for the Building Automation industry.

How to configure the PG-102-101-AA gateway?

  • We will configure the gateway for you based on your requirement and support you during commissioning of the gateway, so you do not have to worry about configuring the PG-102-101-AA gateway.
  • However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.
  • Configuration of the PG-102-101-AA is done using a ‘.csv’ file. This file can be edited using any text editor (example Microsoft excel).
  • In this file we need to enter information for the Client and Server side interfaces of the PG-102-101-AA. This includes but is not limited to:
  • Node ids of the slave devices
  • IP addresses/device address of the slave devices
  • Baud rate, parity, stop bits for serial communication
  • Scan rates
  • And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.
  • For detailed information on configuration please get in touch with us and review the configuration manual on top of this page.
